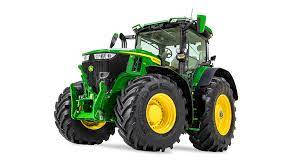

7R 330 Tractor

$0.00

Category: John Deere Tractors

Key Specs
Engine description	John Deere PowerTech™ (B20 diesel compatible) 9.0L
Engine displacement	9.0 L 549 cu in.
Rated engine power	ECE-R120: 243 kW 330 hp
Maximum engine power	ECE-R120: 267 kW 363 hp
Rated PTO power (hp SAE)	193.9 kW 260 hp
Transmission type	Standard: John Deere e23™ 42 km/h 26 mph Optional: John Deere e23 transmission 50 km/h 31 mph John Deere Infinitely Variable Transmission (IVT™) 0.050-42 km/h (0.030-26 mph) John Deere Infinitely Variable Transmission (IVT) 0.050-50 km/h (0.030- 31 mph)
Hydraulic pump rated output	Standard: 63 cc: 162 L/min 43 gpm Optional: 85 cc: 222.3 L/min 59 gpm
Rear hitch category (SAE designation)	Standard: Category 3N/3 with Quik-Coupler Optional: Category 3/3N with hook ends Category 3N/3 with hook ends
Base machine weight	e23, TLS™, 18.4R46: 10,000 kg 22,000 lb

Engine specifications
Description	John Deere PowerTech™ (B20 diesel compatible) 9.0L
Engine type	Diesel, in-line, 6-cylinder, wet-sleeve cylinder liners with 4 valves in head
Engine family	MJDXL09.0319
Rated speed	2100 rpm
Aspiration	Single turbocharger, variable geometry turbo
Emission level	Final Tier 4
After treatment type	Diesel oxidation catalyst (DOC)/diesel particulate filter (DPF)
Displacement	9.0 L 549 cu in.

Transmission
Type	Standard: John Deere e23™ 42 km/h 26 mph Optional: John Deere e23 transmission 50 K 31 mph John Deere Infinitely Variable Transmission (IVT™) 0.050-42 km/h (0.030-26 mph) John Deere Infinitely Variable Transmission (IVT) 0.050-50 km/h (0.030- 31 mph)

Hydraulic system
Type	Closed-center, pressure/flow compensated system with load sensing
Pump rated output	Standard: 63 cc: 162 L/min 43 gpm Optional: 85 cc: 222.3 L/min 59 gpm
Available flow at a single rear SCV	132 L/min 35 gpm
Available flow at front SCVs	126 L/min 33 gpm
Number of rear selective control valves (SCVs)	Standard: Four SCVs Optional: Three to six ISO couplers: 12.7 mm 1/2 in. Five ISO couplers (SCV 1: 19-mm [3/4-in.] couplers, SCV 2-5: 12.7-mm [1/2-in.] coupler)
Number of front selective control valves (SCVs)	One with front hitch
SCV control	Electronic

Rear hitch
Hitch category (SAE designation)	Standard: Category 3N/3 with Quik-Coupler Optional: Category 3/3N with hook ends Category 3N/3 with hook ends
Maximum lift capacity behind lift points	Standard (Category 3): 6,894 kg 15,200 lb Optional (Category 3N): 7,847 kg 17,300 lb Standard (Category 3 with hook ends): 6,894 kg Optional (Category 3N with hook ends): 7,847 kg
Sensing type	Electrohydraulic

Drawbar
Drawbar category	Standard: Category 4
Maximum vertical load	Standard: Category 3: 1,837 kg 4,050 lb Optional: Category 3 with heavy-duty support: 4,536 kg 10,000 lb

Rear power take-off (PTO)
Type	Independent Standard: 44.45 mm (1.75 in.) 20-spline, 1,000 rpm Optional: 44.45 mm (1.75 in.), 20-spline, 1,000 rpm capable of 35 mm (1.375 in.) 540/1000 rpm 44.45 mm (1.75 in.) 20-spline, 1000 rpm with 35-mm (1.375-in.) 540E/1000/1000E rpm gearcase 44.45 mm (1.75 in.) 20-spline, 1000 rpm with 35-mm (1.375-in.) 540/540E/1000 rpm gearcase
Engine rpm (at rated PTO speeds)	540/1000 PTO rpm at 1950 engine rpm 540E/1000E PTO rpm at 1750 engine rpm
PTO actuation	Electric switch with adjustable modulation

Front hitch
Category	Category 3N, ground engaging
Electric power	Seven-pin connector
Standard lift capacity	5,200 kg 11,464 lb
Front power take-off (PTO)	Available: 35 mm (1.375 in.) 21 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO) Available through Parts: 44.45 mm (1.75 in.), 20 spline, 1,000 rpm, counter-clockwise rotation (when facing PTO)
PTO speed	1,000 PTO rpm at 1940 engine rpm

Rear axle
Type	Standard: Rack-and-pinion or flange axles Optional: Diameter: 110 x 2550 mm 4.33 x 100.4 in. Diameter: 110 x 3010 mm 4.33 x 118.5 in. Diameter: 120 x 2550 mm 4.72 x 100.4 in. Diameter: 120 x 3010 mm 4.72 x 118.5 in. Flanged axle: 335 mm (13.2 in.)
Final drive type	Inboard planetary three pinion
Rear differential lock	Full-locking electrohydraulic

Front axle
Type	Standard: 1300 Series MFWD: tread range 1524 to 2235 mm 60 to 88 in. Optional: TLS: Tread range 1524 to 2235 mm TLS with front brakes available with 40 km/h 24.9 mph TLS with front brakes standard with 50 km/h 31 mph
Front axle differential lock	1300 Series MFWD: Limited slip TLS: Limited slip TLS with front brakes: Full-locking electrohydraulic (actuated at same time as rear diff lock)

Tires
Rear	RCI Group 48/49
Turning radius with brakes	600/70R30 group 43 tires at 188.2-cm (74.1-in.) spacing, TLS: 6.7 m 22 ft 620/75R30 group 44 tires at 208.3-cm (82-in.) spacing, TLS: 8.7 m 28.5 ft

Steering
Type	Standard: Hydraulic power-steering with electric pump back-up Optional: ActiveCommand Steering 2 (ACS2) w/ electronic back-up pump

Electrical system
Alternator size	Standard: 210 amp Optional: 250 amp
Battery options	12 V
Working lights	Standard: 18 halogen Available: 18 LED or 22 LED
Type of bulb in headlight (Halogen, Zenon, LED)	Standard: 65-W halogen Available: LED
Total cold cranking amps	With two 925 CCA group 31 batteries: 1850 CCA

Operator station
Seat	Degree of seat swivel, left hand Optional: 25 degree Degree of seat swivel, right hand 40 degree Standard: air suspension Optional: ActiveSeat™ II
Cab suspension	Optional
Instructional seat	Standard
Display	Standard: 4100 Generation 4 CommandCenter™: 25.4 cm 10 in.
Radio	Standard: AM/FM stereo with weatherband, remote controls, auxiliary input jack, four speakers and external antenna
Inner cab volume	3.24 m³ 114 cu ft
Cab glass area	6.56 m² 70.61 sq ft

Dimensions
Wheelbase	2,925 mm 115.2 in.
Overall length	5,540 mm 218 in.
Drawbar clearance	Group 48 rear tires: 415 mm 16.3 in. Group 49 rear tires: 461 mm 18.1 in.

Weight
Base machine weight	e23, TLS, 18.4R46: 10,000 kg 22,000 lb
Maximum ballast level	SAE PTO hp: 61.2 kg 135 lb

Capacities
Crankcase oil volume	23 L 6.1 U.S. gal.
Fuel tank	e23™: 463 L 122 U.S. gal. IVT: 513 L 135 U.S. gal.
Diesel exhaust fluid (DEF) tank	26.2 L 6.9 U.S. gal.
Cooling system	44.5 L 11.8 U.S. gal.
Transmission-hydraulic system	160 L 42.3 U.S. gal.

Serviceability
Interval for engine oil change	500 hours
Interval for hydraulic/transmission oil change	1,500 hours
Interval for engine coolant change	6,000 hours

Precision AG
Guidance	Integrated AutoTrac™
Telematic	JDLink™
Remote diagnostics	ServiceADVISOR™ Remote: available with JDLink hardware and activations Remote Display Access: available with JDLink hardware and activations

Miscellaneous
Country of manufacture	USA

Date collected	10-Jul-2020
